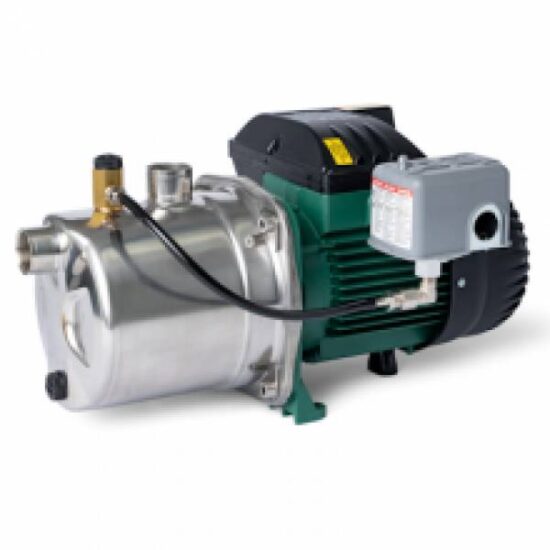

DAB Euroinox Multistage Horizontal Centrifugal Pump 115/230V

Description

The DAB EUROINOX is a multistage horizontal centrifugal pump, noted for its exceptionally quiet operation, making it ideal for residential water supply and pressurization, garden irrigation, and general water movement. The Euroinox model features a stainless steel pump body, with motor support in die-cast aluminum and a seal holder made from AISI 304 steel. It includes a mechanical seal crafted from carbon and ceramic, a rotor shaft also in AISI 304 steel, while rotors, diffuser bodies, and diffusers are made from technopolymer. Stainless steel adjustment rings complete the design. The DAB Euroinox 50/506 M operates at 115/230V with dual voltage capability.

TECHNICAL DATA

Operating Range: From 1 to 32gpm (0.6 to 7.2 m3/h) with a head up to 236ft ( 72 m) 102 psi

Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water

Liquid temperature Range:

from 32°F to +95°F (0°C to +35°C )for domestic use

from 32 F to +104 F (0°C to +40°C )for other uses

Maximum Suction depth: 26 ft (8 m)

Maximum ambient temp. 104°F (+40°C )

Maximum operating pressure: 116 psi (8 bar)

Installation: fixed or portable in a horizontal position

Special version: on request other voltages and/or frequencies

Power Supply:  115v / 230v 60Hz Dual Voltage

Features

• Multistage centrifugal electric pump
• Pump body in stainless steel
• Self-priming up to 6 mm
• Built-in capacitor and single-phase version complete with thermal and current overload protection

Advantages

• The special design make these pumps exceptionally silent-running.
• High pressures of up to 8 bar can be reached.
• Optimal motor cooling

Benefits

• Silent running
• Reliable
• Optimal hydraulic performance

Applications include:

• Domestic Water pressurization
• Water pressurization for irrigation systems
• pressurization of sprinklers & sprinkler systems
