RainSeeker 5700L Aboveground

Cleanflo’s RainSeeker Maximus 5700L is a complete above-ground potable rainwater treatment system that harvests, stores, pumps, filters and disinfects rainwater safely. Designed to meet CSA B805 and NSF standards, it ensures drinking-quality water. Easy to install and maintain, it provides an all-in-one sustainable solution.



SKU: RAINSEEKER5700 Category:

From: $9,336.44

Wisy Vortex100 Rainwater Prefilter - product image

Wisy Vortex 100 Rainwater Prefilter

WISY Vortex 100 Rainwater Prefilter is designed to separate solids from water and can be used for buildings with 2,150 sq. ft. of roof area. Multiple WFF150 units can be used to cover larger roof areas greater than 2,150 sq. ft.

$946.00
WISY Wall Mounting Bracket (WFF 100/150) - product image

WISY Wall Mounting Bracket (WFF 100/150)

WISY Wall Mounting Bracket (WFF 100/150) made of stainless steel for installing the Wisy Vortex Filter on a vertical wall.

$522.00 each
5700L Upright Tank

5700L Upright Tank

The upright tank is crafted from high-density polyethylene (HDPE) material, ensuring robust durability and resistance to various environmental conditions. Its one-piece construction enhances its structural integrity, eliminating potential weak points and leaks. Designed for ease of handling, the tank features four-point lifting lugs, facilitating secure and efficient transportation. Made from FDA-approved food-grade plastic, it is safe for storing consumable goods. Additionally, the tank is equipped with UV stabilizer protection to prevent degradation from sunlight exposure. It also includes a 16-inch hinged locking lid with an air breather, ensuring secure and ventilated storage.

10 year warranty

Black
WISY Smoothing Inlet - product image

WISY Smoothing Inlet, 4"

The WISY Smoothing Inlet and aerator is designed to add oxygen to the rainwater and prevent agitation of the biofilm on the rainwater tank(s) floor when additional water is collected.  Shop now!

  • Second step of the 4 step Rainwater cleansing system
  • Distributes freshly incoming rainwater in the storage tank
  • Prevents sediment from being whirled up
  • Smoothing Inlet is made of stainless steel
  • Optionally with telescopic extension
$241.00 each
Backwater Valve 4.0” rainwater harvesting accessory - product image

Backwater Valve 4.0”

This backwater Valve 4.0" is for use with 4" Pipe.  This valve is a backwater prevention device used to prevent outbound water through a dwelling's drain pipes from re-entering -- "back flowing"—into a home. The valve contains a flap that allows water to exit the home, but closes to prevent the back flow into the home.



This backwater Valve is for use with 4.0" Pipe

$99.35 each
Wisy Floating Filter Coarse, 1 1/4″, 1200 micron w/check valve

Wisy Floating Filter Coarse, 1 1/4″, 1200 micron w/check valve

  • Floating suction coarse filter with 1.2 mm mesh size
  • with non-return valve and 1 1/4" hose connection
  • suitable for suction pumps
  • floating ball ø 15 cm
$260.00 each

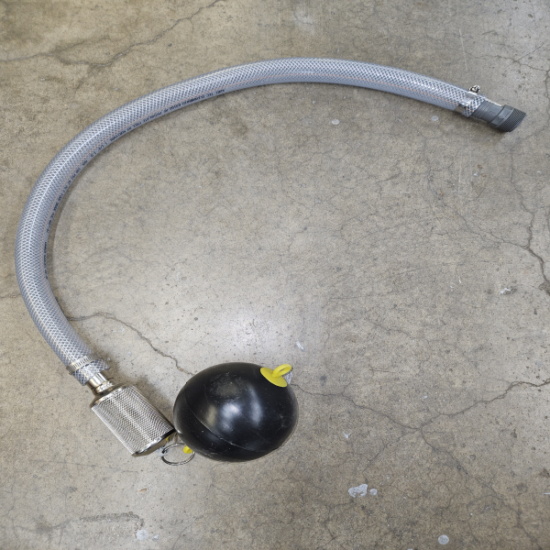

Flexible Suction Hose for Floating Filter 1 1/4" NPT

Flexible Suction Hose for Floating Filter 1 1/4" NPT

Flexible Suction Hose for Floting filter with 1 1/4" hose connection to 1 1/4" NPT Male connection piece and 2 Hose clamps for attachment.

Easily connect your pump to your floating filter with the simple hose and clamp set-up!

6ft
VFD Inline Esybox mini3, rainwater collection DAB pump - product image

DAB, VFD Inline Esybox mini3

VFD Inline Esybox mini3 is the most compact electronic pressurization system in the world. Thanks to the technological know-how developed during more than 40 years.  DAB pumps Revolutionary, integrated E.SYBOX mini 3 provides a new installation experience and maximum comfort during use.

3 year warranty!

When you purchase a DABs pump you get 2 years of warranty from the manufacturer.  Rainwater Collection Supply will provide you with a 1-year extended warranty for no extra cost.

$1,890.00 each

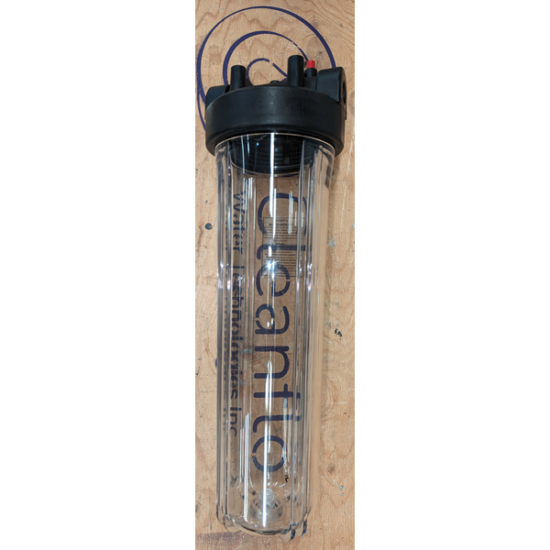

Clear rainwater harvesting filter housing, Newfoundland and Labrador, Prince Edward Island - product image

Clear Filter Housing 4.5" X 20"

Enhance your water filtration system by incorporating our cutting-edge 20" clear 4.5" water filter housing. Tailored for exceptional performance, this housing is meticulously engineered to excel in agricultural, residential, and recreational vehicle settings.



$305.48 each

Housings Mounting Bracket Triple

4.5" Diameter Housing mounting bracket for triple filters. Tailored for exceptional performance, this housing bracket is meticulously engineered to excel in agricultural, residential, and recreational vehicle settings.



$165.00 each

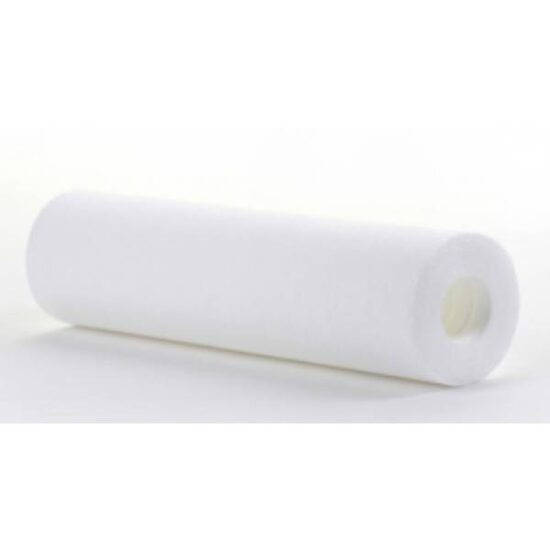

Sediment Cartridge Filters 4.5" X 20" rainwater harvesting - product image

Sediment Cartridge Filters 4.5" X 10"/20"

A Sediment Cartridge Filter, measuring 4.5 inches in diameter and are available in 10 inches and 20 inches in length, is a type of water filtration component commonly used in residential, commercial, and industrial water treatment systems. Its main purpose is to remove sediment, particles, and impurities from water, enhancing its clarity and quality.



20-inch
5-micron

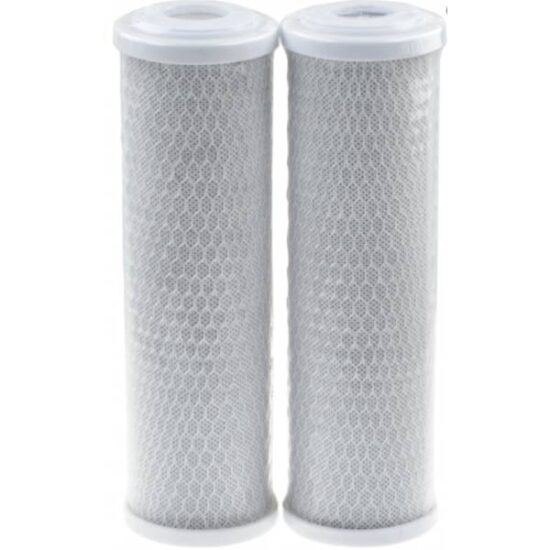

Carbon Cartridge Filters 4.5" X 10"/20"

Carbon Cartridge Filters 4.5" X 10"/20"

A Carbon Cartridge Filter, often referred to as a carbon filter or activated carbon filter, is a filtration device used to remove impurities, contaminants, and odors from water or air by utilizing activated carbon as the filtering medium.

20-inch
10-micron
Sediment Cartridge Filters 4.5" X 20" rainwater harvesting - product image

Sediment Cartridge Filters 4.5" X 10"/20"

A Sediment Cartridge Filter, measuring 4.5 inches in diameter and are available in 10 inches and 20 inches in length, is a type of water filtration component commonly used in residential, commercial, and industrial water treatment systems. Its main purpose is to remove sediment, particles, and impurities from water, enhancing its clarity and quality.



20-inch
1-micron absolute

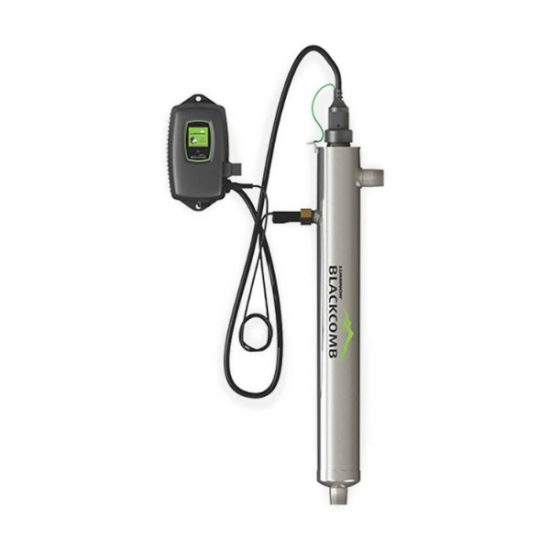

NSF 55 Certified, UV System Only (7.9 GPM @ 40mJ)

The Luminor BLACKCOMB 6.1 NSF 55 Certified, UV System Only (7.9 GPM @ 40mJ) is engineered for excellence with a range of advanced features and specifications. Its axial flow, 304 stainless steel polished reactors are designed for optimum fluid dynamics.

$1,814.00 each

Description

RainSeeker Maximus System- 5700L Above Ground

Cleanflo’s RainSeeker Maximus 5700L Above Ground Potable Rainwater Treatment System is an all-encompassing solution engineered to effectively harvest, prefilter, store, aerate, manage overflow, and pump rainwater for utilization. These systems meet all CSA B805 and NSF rainwater harvesting standards and features:

– Pre-filtering: This process separates larger particles and oxygenates the rainwater to prevent the growth of anaerobic bacteria.

– Rainwater Storage: Tank is provided for secure storage and easy access.

– Smoothing Inlet: This component gently disperses freshwater in the cistern to avoid stirring up sediment.

– Floating Suction System: This system extracts clear rainwater from about 20 cm below the water surface and delivers it to consumers.

– Overflow Management: This feature routinely flushes the top layer of water to maintain optimal oxygen exchange, prevent barriers, and ensure back flow prevention.

Vida System- Potable System 8GMP Flow Rate

Potable Rainwater Treatment System is a comprehensive solution designed to purify rainwater, making it safe for drinking and other uses. The system is engineered to comply with all CSA B805 rainwater harvesting standards and designed for easy installation and maintenance. Here are the key components and features:

– Advanced Pump: The Pump is an integrated electronic water pressure booster system designed for domestic use, providing constant water pressure and energy savings. It features variable-speed electronics that ensures constant pressure in relation to the flow rate.

– Sediment Cartridge with Housing: Filters out particulates.

– Carbon Cartridge with Housing: Improves taste and odor.

– Additional Sediment Cartridge with Housing: Provides extra filtration.

– Cartridge Housing Mounting Bracket: Securely holds the cartridges.

– UV Treatment System: This system utilizes NSF55 certified ultraviolet light to eliminate bacteria and other microorganisms. The UV system is robust enough to eliminate the need for a chlorine system, offering a chemical-free solution.

Complete System Components & Equipment List

The following component breakdown organizes the supplied equipment into logical categories, making it easier for customers, installers, and purchasing teams to understand what is included with the system and what optional accessories may be required.

System Overview

Specification Details
Product Name RainSeeker Maximus 5700L Above-Ground Potable Rainwater Treatment System
System Type Complete above-ground potable rainwater harvesting and treatment system
Storage Capacity 5,700 L
Installation Above-ground
Compliance CSA B805 Rainwater Harvesting Standard; NSF-compliant treatment components (including NSF 55-certified UV system)
Intended Use Potable and non-potable rainwater supply for residential and light commercial applications

Supplied Rainwater Harvesting Components

Component Function
5,700 L Rainwater Storage Tank Stores harvested rainwater for later use
Rainwater Prefilter Removes leaves, debris, and coarse contaminants while oxygenating incoming rainwater
Smoothing Inlet Introduces incoming water gently to minimize disturbance of settled sediment
Floating Suction Assembly Draws the cleanest water from approximately 20 cm below the water surface
Overflow Management Assembly Flushes floating debris, promotes oxygen exchange, and provides backflow protection

Potable Water Treatment Components (Vida System)

Component Function
Variable-Speed Pressure Booster Pump Maintains constant water pressure while optimizing energy consumption
Electronic Pump Controller Automatically adjusts pump speed based on water demand
Primary Sediment Filter Cartridge Removes suspended particles and sediment
Primary Sediment Filter Housing Holds the sediment cartridge
Carbon Filter Cartridge Reduces taste, odor, chlorine, and organic compounds (where applicable)
Carbon Filter Housing Protects and supports the carbon filter
Secondary Sediment Filter Cartridge Provides additional particulate filtration before UV treatment
Secondary Sediment Filter Housing Holds the secondary sediment filter
Cartridge Housing Mounting Bracket Supports all filter housings for organized installation
NSF 55-Certified UV Treatment System Disinfects water by inactivating bacteria, viruses, and other microorganisms

Pump Configuration

Feature Description
Pump Type Electronic variable-speed pressure booster
Rated Flow 8 GPM
Pressure Control Automatic constant-pressure operation
Energy Saving Variable-speed motor adjusts output to water demand
Typical Applications Whole-house potable rainwater supply

Filtration Sequence

Stage Purpose
Stage 1 Rainwater prefilter removes leaves and coarse debris
Stage 2 Smoothing inlet minimizes sediment disturbance inside the storage tank
Stage 3 Floating suction extracts the cleanest stored water
Stage 4 Primary sediment filtration removes suspended particles
Stage 5 Carbon filtration improves taste and odor
Stage 6 Secondary sediment filtration provides final particulate removal before UV treatment
Stage 7 NSF 55-certified UV disinfection inactivates microorganisms for potable water use

Plumbing Accessories and System Hardware

The system incorporates the following plumbing and installation accessories:

Accessory Purpose
Cartridge mounting bracket Supports filter housings
Integrated plumbing connections Connect treatment components within the system
Overflow connection Directs excess water to drainage while preventing backflow
Floating suction hose and intake assembly Supplies filtered water to the pump
Internal smoothing inlet assembly Maintains water quality during tank filling

Operating Features

  • Complete rainwater harvesting and potable treatment solution
  • Integrated rainwater collection, storage, treatment, and distribution
  • Constant-pressure domestic water supply
  • Variable-speed pump for reduced energy consumption
  • Automatic overflow management
  • Continuous oxygenation of stored rainwater
  • Reduced sediment disturbance through smoothing inlet
  • Floating suction draws the cleanest available water
  • Multi-stage filtration followed by ultraviolet disinfection

Compatible Applications

Suitable for:

  • Whole-house potable water supply
  • Drinking water (following proper installation and commissioning)
  • Bathroom fixtures
  • Kitchen sinks
  • Laundry
  • Toilet flushing
  • Irrigation
  • General household water supply
  • Rural and off-grid homes
  • Residential rainwater harvesting
  • Light commercial buildings

Optional System Accessories

The following accessories may be available depending on project requirements (availability should be confirmed with the manufacturer or supplier):

Accessory Purpose

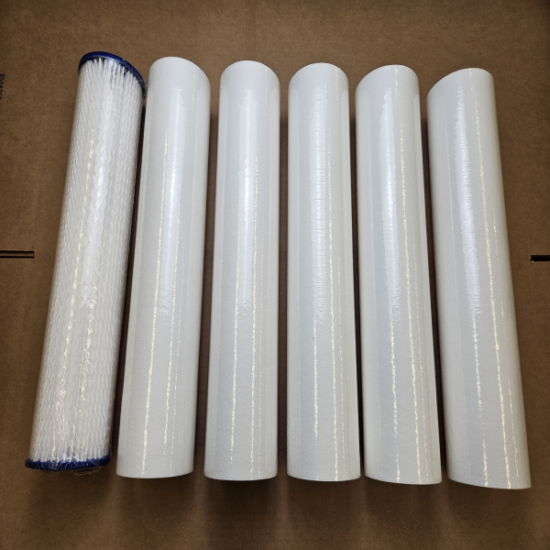

Replacement sediment cartridges Routine filter maintenance
Replacement carbon cartridges Routine filter maintenance
Replacement UV lamp Periodic UV system servicing
Replacement quartz sleeve UV system maintenance
Floating suction replacement assembly Service component
Additional rainwater storage tanks Increased storage capacity
Tank interconnection kits Connect multiple storage tanks
Tank level indicator Monitors stored water volume
Automatic mains water backup system Provides water during low rainfall
Freeze protection accessories Cold-climate installations

Purchasing Checklist

The RainSeeker Maximus 5700L Above-Ground Potable System includes:

  • 5,700 L rainwater storage tank
  • Rainwater prefilter
  • Smoothing inlet
  • Floating suction system
  • Overflow management assembly
  • Variable-speed pressure booster pump (8 GPM)
  • Primary sediment filter and housing
  • Carbon filter and housing
  • Secondary sediment filter and housing
  • Cartridge mounting bracket
  • NSF 55-certified UV treatment system

Technical Content Improvements

To improve purchasing clarity and technical organization, the system documentation has been restructured into clearly defined sections covering:

  • Complete supplied equipment list
  • Filtration and treatment stages
  • Pump configuration
  • Plumbing accessories
  • Operating features
  • Compatible applications
  • Optional accessories
  • Purchasing checklist

Note: The provided information does not specify certain details such as individual fitting sizes, tank dimensions, empty tank weight, electrical requirements, pump horsepower, or included plumbing fittings (e.g., valves, unions, pressure gauges)

 *Please note that shipping is included for most urban areas. The exact shipping cost will be determined at the time of shipping based on the actual weight, dimensions, and destination of the package. LTL (Less Than Truckload) shipments typically take 1 to 7 business days for delivery after item let from our warehouse depending on the shipper’s operational capabilities and commitments

**Important note:  Kit comes in individual parts customer assembly is required!**

Additional information

Wisy Vortex 100 Rainwater Prefilter

Weight 15.8757 kg
Dimensions 31 × 39 × 51 cm

WISY Wall Mounting Bracket (WFF 100/150)

Weight 1.8 kg
Dimensions 15 × 6 × 8 cm

5700L Upright Tank

Dimensions 210 × 210 × 190 cm
Colour

Black

WISY Smoothing Inlet, 4"

Weight 0.6 kg
Dimensions 20 × 16 × 16 cm

Backwater Valve 4.0”

Weight 1.4 kg
Dimensions 35 × 17 × 15 cm

Wisy Floating Filter Coarse, 1 1/4″, 1200 micron w/check valve

Weight .45 kg
Dimensions 31 × 16 × 16 cm

Flexible Suction Hose for Floating Filter 1 1/4" NPT

Weight .91 kg
Dimensions 47 × 47 × 16 cm
Length

6ft

DAB, VFD Inline Esybox mini3

Weight 15 kg
Dimensions 55 × 35 × 35 cm

Clear Filter Housing 4.5" X 20"

Weight 2.3 kg
Dimensions 55 × 12 × 12 cm
material

clear plastic

Housings Mounting Bracket Triple

Weight 4.5 kg
Dimensions 63 × 27 × 17 cm
material

clear plastic

Sediment Cartridge Filters 4.5" X 10"/20"

Weight 0.5 kg
Dimensions 55 × 15 × 15 cm
Length

20-inch
Micron

5-micron

Carbon Cartridge Filters 4.5" X 10"/20"

Weight 0.5 kg
Dimensions 50 × 12 × 12 cm
Length

20-inch
Micron

10-micron

Sediment Cartridge Filters 4.5" X 10"/20"

Weight 0.5 kg
Dimensions 55 × 15 × 15 cm
Length

20-inch
Micron

1-micron absolute

NSF 55 Certified, UV System Only (7.9 GPM @ 40mJ)

Weight 8 kg
Dimensions 112 × 16 × 31 cm
