Wisy Vortex 300 Rainwater Prefilter with 60 ton lid

Experience the innovative efficiency of the WISY Vortex 300 Rainwater Filter, where technology meets sustainability. As rainwater flows through the horizontal inlet pipe, it enters the filter in a dynamic vortex motion, harnessing water’s natural adhesive forces. This process drives the water through a vertical fine filter, ensuring only clean water passes through to your storage tank while filtered dirt particles are directed to the storm drain.

SKU: WF 3001 Categories: , Tags: ,

$12,470.00

Frequently Bought Together

Wisy Vortex 300 extension tube 48"

  • Extension pipe made of PE
  • for raising the inspection opening to ground level
  • diameter 70 cm
  • length selectable up to max. 140 cm
  • price per 10 cm.

Wisy Vortex 300 stainless steel lifting handle 1.6FT

  • Lifting handle made of stainless steel
  • for removing the filter element for inspection purposes
  • Lifting handle for WFF 300 length 50 cm
  • Additional extension for WFF 300 optional 50 cm or 100 cm

Wisy 300 Overflow, Multifunction, 8"

Technical Data:

  • Outer Diameter of Pipe: 200 mm

  • Inner Diameter of Pipe: 190 mm

  • Max Volume of Water Intake: 33.6 liters/sec

  • Min. Gradient of Pipe: 2%

  • Material: Polyethylene, Stainless Steel

Includes:

  • Seal against odors from the sewage system

  • Stainless steel rodent guard

  • Support pipe for secure attachment

  • 2 x stainless steel chains for attachment to ceiling or wall, 1 m each

Description

Description:

Introducing the powerful WISY Vortex 300 Rainwater Filter, your ultimate solution for efficient rainwater management in large-scale applications. Engineered to handle up to 32,290 sq. ft. of roof area, this filter effectively separates solids from water, making it ideal for industrial water treatment or large building projects.

Perfect for both above and below ground collection systems, the WFF300 directs debris away from stormwater while diverting up to 95% of filtered rainwater to storage tanks. Multiple units can be seamlessly integrated to cover even larger roof areas, ensuring maximum water utilization for irrigation, toilet flushing, janitorial needs, and more.

For projects with piping elevation constraints, consider the Short WFF300 variant, which offers a reduced inlet and outlet elevation height difference for enhanced flexibility. Elevate your rainwater harvesting capabilities with the WISY WFF300 Vortex Filter, designed for reliability and sustainability in every drop.

Design:

Experience the innovative efficiency of the WISY WFF300 Vortex Rainwater Filter, where technology meets sustainability. As rainwater flows through the horizontal inlet pipe, it enters the filter in a dynamic vortex motion, harnessing water’s natural adhesive forces. This process drives the water through a vertical fine filter, ensuring only clean water passes through to your storage tank while filtered dirt particles are directed to the storm drain.

Achieving optimal performance, the filter insert reaches peak efficiency once its mesh is fully saturated, typically within 2 minutes from initial use. This feature makes the WFF300 an ideal “first flush” rainwater pre-filter, meeting stringent standards like ARCSA/ASPE/ANSI Standard 63 for Rainwater Catchment Systems.

Enhance your rainwater harvesting system with the WISY WFF300 Vortex Filter—where reliability, efficiency, and sustainability converge to elevate your water management capabilities.

Specs:

  • Collection Area: 32,290 ft.2

  • Filtering Efficiency: Up to 222 GPM (14 l/s) (over 90%)

  • Standard WFF300 with Composite Lid – WF 3010 (alternate part # RH9521-12PC)

  • Standard WFF300 with 60-ton Rated Steel Lid – WF 3001 (alternate part # RH9521-12XH)

  • Short WFF300 with Composite Lid – WF 3020

  • Short WFF300 with 60-ton Rated Steel Lid – WF 3023

  • Inlet and Outlet elevation difference for WFF300: 18.25 in

  • Inlet and Outlet elevation difference for Short WFF300: 12.6 in

  • Housing components: Polypropylene (PP)

  • Sealing rings: EPDM

  • Filter insert and mesh, end ring, baseplate, lifting handle material: Stainless-steel 1.4301

  • Filter mesh: 380 microns

  • Rainwater inlet (collar): 12 in.

  • Clean water outlet: 8”

  • Debris outlet: 12”

  • Dry Weight: with steel cover 238 lbs.;

Each WFF300 Vortex Filter includes:

  • Polypropylene Filter Housing with 12” inlet, 12” debris outlet, 8” filtered water outlet

  • 380 Micron Stainless Steel Filter Insert

  • Baseplate

  • Lifting Handle

  • Housing cover (polyethylene or steel)

  • Rotating upper and bottom half of housing for custom installation

Spare Parts:

  • 380 Micron Stainless Steel Filter Insert – WE 0307

  • 380 Micron Stainless Steel Filter Insert coated with Titanium Nitride (for high levels of abrasive stress) – WE 0406

  • 180 Micron Stainless Steel Filter Insert – WE 0311

  • 380 Micron Stainless Steel Filter Insert for the Short WFF300 – WF 0310

  • Steel Lid with 60-ton capacity – WF 4001

  • Lifting Handle – WA 0305

Accessories for WFF300:

  • Extension tube (48” increments) – WV 1030

  • Intermediate ring for connection – RS 1020

  • Extension Handle

    • 20 in – WA 0307

    • 36 in – WA 0309

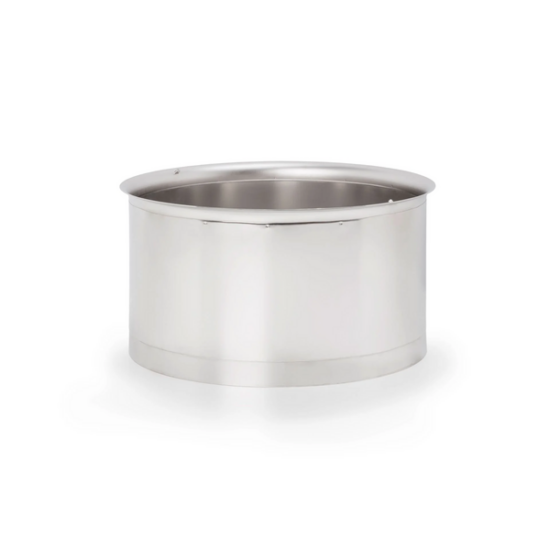

  • Blind Insert – BE 0306

  • Sieve Basket (aka soakaway strainer) – VS 0310

  • End ring with child safety device (required for steel lid) – RA 1020

  • Cleaning spray nozzle, pump without timer – SC 3000
