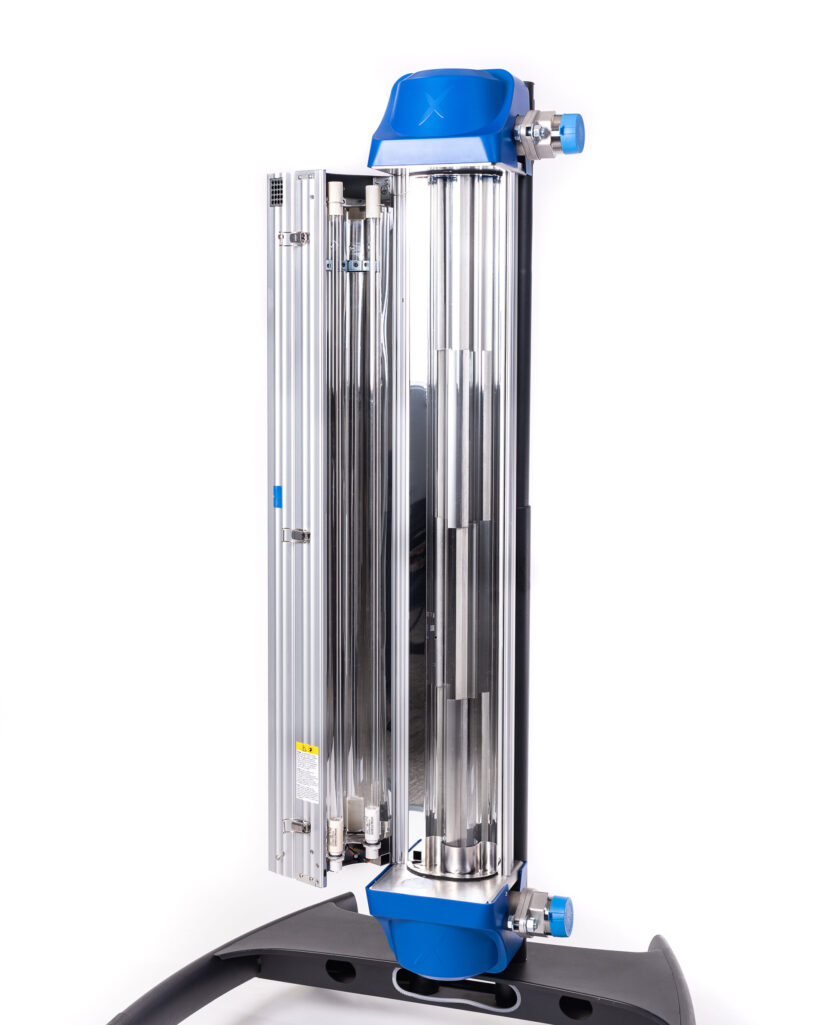

Potable Dual Bulb UV, 100 GPM, 1000P

Introducing Hallett Potable – Unparalleled UV Water Disinfection

Hallett Potable sets the benchmark for reliability and protection in both public and private drinking water systems. Our cutting-edge UV Pure technology, featuring the revolutionary Crossfire TechnologyTM, ensures a problem-free experience with superior performance and safety certifications recognized worldwide.

SKU: UVP-G24 Categories: , Tags: , , ,

$11,220.00

Description

Potable Dual Bulb UV, 100 GPM, 1000P

Introducing Hallett Potable – Unparalleled UV Water Disinfection

Hallett Potable sets the benchmark for reliability and protection in both public and private drinking water systems. Our cutting-edge UV Pure technology, featuring the revolutionary Crossfire TechnologyTM, ensures a problem-free experience with superior performance and safety certifications recognized worldwide.

Certified Lead-Free and Equipped with Crossfire Technology

Rest assured that Hallett Potable boasts certified lead-free wetted parts, meeting the highest standards of safety. The heart of our system lies in the core Crossfire TechnologyTM, which targets harmful pathogens from all angles, delivering a 360-degree sterilizing UV dose. Patented elliptical reflectors redirect light energy to overcome shadowing, guaranteeing effective disinfection.

Continuous Monitoring for Ultimate Peace of Mind

Each Hallett system comes equipped with dual smart UV sensors that continuously monitor lamp output and water quality. This real-time monitoring ensures the highest level of disinfection is consistently achieved, practically eliminating nuisance alarms. Troubleshooting becomes a breeze, should the system ever fall out of compliance.

Self-Cleaning System and Easy Lamp Changes

Say goodbye to quartz fouling concerns! Our self-cleaning system prevents any potential issues, maintaining optimal performance. Plus, when it comes to lamp changes, we’ve made it a safe and easy process, reducing downtime and hassle.

Certifications to Rely On

Hallett Potable carries impressive NSF/ANSI certifications to give you peace of mind about the quality and safety of our product. Certified to NSF/ANSI 55 Class A, NSF/ANSI 61, and NSF/ANSI 372, our systems are designed to disinfect water contaminated with pathogenic bacteria, viruses, Cryptosporidium, or Giardia. Moreover, our systems meet safe levels of contaminants and lead content, making them a trustworthy choice for all your water disinfection needs.

Advanced UV Disinfection for Various Applications

UV Pure Technologies, with over 18,000 installations worldwide, specializes in advanced UV water disinfection systems. Our Hallett™ products cater to a wide range of applications, from potable and wastewater to reuse and rainwater disinfection systems. With flow capacities of up to 3,800 cubic meters per day (1 million gallons per day), we have solutions to meet your specific requirements.

Join Industry Leaders in Choosing Hallett Potable

Our groundbreaking Crossfire TechnologyTM has been selected for use on the Boeing 787 Dreamliner and is trusted by water industry giants like SUEZ, Evoqua, the Los Angeles Department of Water and Power, Veolia, and CH2M. UV Pure’s dedication to innovation and excellence has earned us numerous prestigious awards, including the Artemis Top 50 Clean Tech Company award, Going Green Global Top 200 award, two Frost & Sullivan Best Practices Awards, and recognition from the Canadian Drinking Water Association for innovation.

Experience the Future of UV Water Disinfection

Whether for commercial, industrial, municipal, residential, or decentralized applications, Hallett Potable is the answer to your challenging water disinfection needs. Our systems ensure clean, safe, and reliable water, supporting a healthier and more sustainable future.



Features

Quartz sleeve cleaning

Built-in – automatic mechanical wiper

Wiper position switch

Built-in

Purge valve

Built-in

Cooling

Built-in – forced air

Flow restrictor

Optional – external

Shut-off valve

Optional – automatic solenoid



Operating Range

Flow (single unit)

Up to 100 US gpm (378 Lpm)

UV dose

16 – 200 mJ/cm

UV Transmittance [UVT] (water)

50 – 95% UVT

Hardness (water)

Maximum 855 mg/L (50 gpg)

Iron (water)

Maximum 3 mg/L (3 ppm)

Temperature (air)

34 – 104°F (1 – 40°C)

Temperature (water)

34 – 95°F (1 – 35°C)

Water pressure

5 – 100 psig (34 – 690 kPa)

Relative humidity (air)

Maximum 70%





Electrical/Instrumentation

Voltage

120/230 V AC, 50/60 Hz

Power consumption (nominal)

403 W

Certifications

UL 979

UV lamps

Dual amalgam – air mounted

Lamp life (typical)

12,000 hours

Lamp cycles (recommended)

Maximum 6 to 12 cycling per 24 hours

Sensors

Quad UV – calibrated to NIST standard

Dry contacts

Built-in – 2 provided (warning and alarm)

Interface

Colour LCD resistive touchscreen display

Alarming

Indicator light and audible alarms

Remote start/stop

Built-in

Onboard diagnostics

Built-in

4-20mA Output & Modbus

Optional

Physical

Dimensions (H x W x D)

55.8 x 11.5 x 8.6 in (1418 x 291 x 218 mm)

Weight (dry)

52 lb (23.5 kg)

Weight (wet)

58.3 lb (26.4 kg)

Wetted parts

Meets NSF/ANSI/CAN 61 & NSF/ANSI 372 for water up to 73°F (23°C)

Body materials

Anodized aluminum and 316 Stainless Steel

Body configuration

Double door with side hinges

Inlet/outlet ports

2″ MNPT Stainless Steel, optional – Stainless Steel hose

Ingress Protection rating

IP 51, optional – IP 66 for NEMA cabinet systems

Multiple units

Multiplex manifold and cabinets available

Warranty

5-year limited warranty for structural, hardware and mechanical components;

3-year limited warranty on electrical components

and quartz sleeves; 12-month limited warranty on bulbs; and

1-year limited warranty on sensor probes

Downloads

Technical Data Sheet

downloadLayout

download

Additional information

Weight 23.5 kg
Dimensions 21.8 × 29.1 × 141.8 cm
